Sub- category

    Professional Wall Soundproofing.

    For noisy neighbours, studios, Part E and commercial.

    ACOUSTIC WALLS (6)


    PhonoWall® 22

    Superior Direct to wall acoustic solution. Medium to High Noise

    Board Size

    Thickness

    Impact Rating

    Airborne Rating

    Weight

    0.72m²

    22mm

    N/A

    63dB

    14.6kg

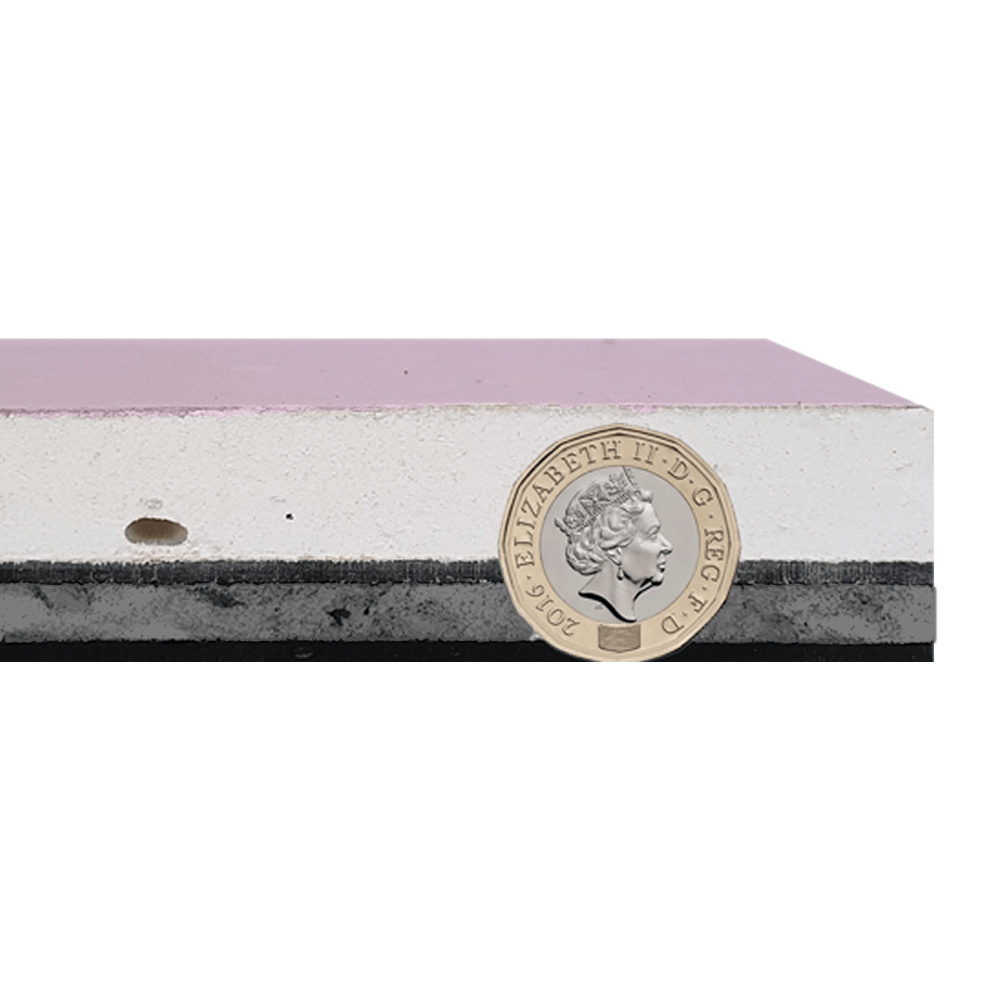

    PhonoWall® 27 Max

    Superior Direct to wall acoustic solution. Medium to High Noise

    Board Size

    Thickness

    Impact Rating

    Airborne Rating

    Weight

    1.2m²

    27mm

    N/A

    62dB

    26.72kg

    PhonoBoard®
    For use with PhonoClip®'s to create an isolated wall.

    Board Size

    Thickness

    Impact Rating

    Airborne Rating

    Weight

    0.72m²

    12mm

    N/A

    56dB

    14.9kg

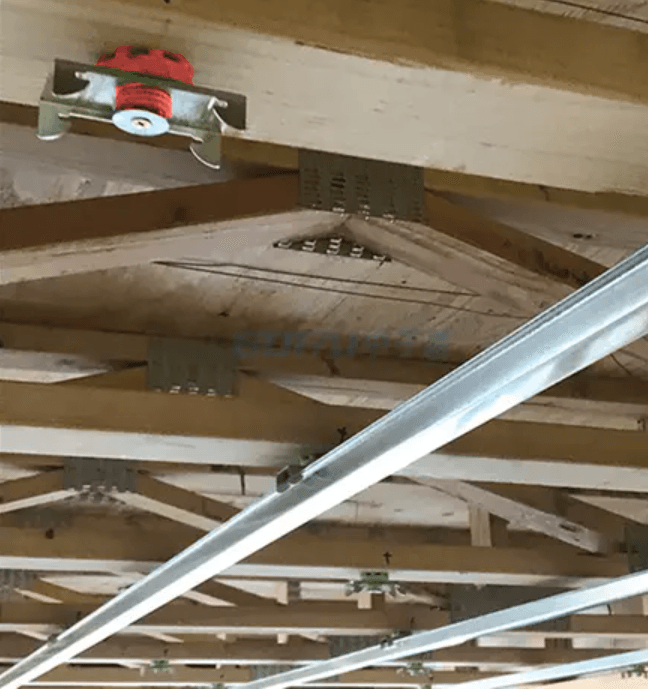

    PhonoClip®
    Isolation clip to be used with the PhonoClip® Furring Channel

    Weight

    Thickness

    Max Load

    Box Quantity

    Airborne Rating

    60g

    29mm

    16.4kg

    100

    54dB

    PhonoClip® Furring Bar
    Furring Bar to be used with the PhonoClip® exclusively

    Length

    Overlap

    Max Load

    Box Quantity

    Used With

    1.8m

    200mm

    16.4kg  (Clip)

    1

    PhonoClip®

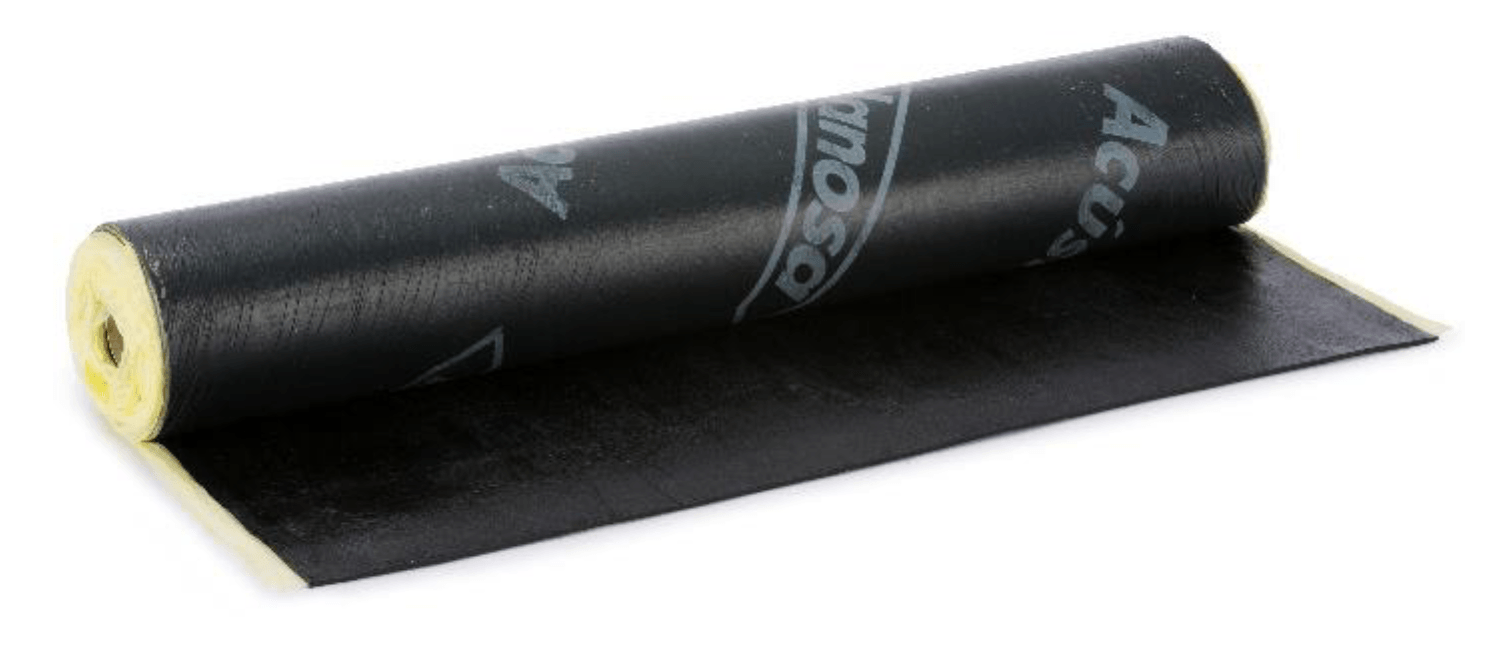

    PhonoShield® Visco

    Self adhesive backed barrier membrane to stick onto the wall

    Length

    Thickness

    SAB

    Weight

    Fire Rating

    Various

    Various

    Yes

    Up to 10kg/m²

    D s3 d0

    Value Engineering Soundproofing Wall Composites and Isolation Clips.


    Soundproofing interior walls with  boards from acuphon's system and acoustic panel range. Choose from the acuphon's acoustic panel systems, soundproofing panels will increase the sound damping of your walls to block unwanted noise from conversation and TV. The best wall soundproofing method is a combination of sound insulation products to increase both separation and mass of your walls. Acoustic insulation, PhonoClip® + resilient bars / furring bars with either a soundproof plasterboard or for added mass, our Phonoboard® and a further heavy mass barrier layer, Phonoshield® Visco will reduce high levels of airborne and impact sounds through your walls, PhonoWall®22 or PhonoBoard®. Combining acuphon's wall soundproofing materials, with the addition of surface panels to absorb sound energy this will reduce higher levels of airborne and impact sounds through walls whilst controlling reflective noise in any given space.​

    Alternatively Request

    A Quote

    OR call us on 01904 900194

    Available Mon-Fri 8am - 7pm

    Soundproofing Walls

    Wall soundproofing products to soundproof your walls against noisy neighbours. Direct to wall sound insulation for soundproofing existing walls to restore peace and quiet. Slim soundproof wall panels, complete acoustic wall kits to soundproof party walls and internal stud walls and wall lining.


    Choose from the acuphon's acoustic panel systems, soundproofing panels will increase the sound damping of your walls to block unwanted noise from conversation and TV. The best wall soundproofing method is a combination of sound insulation products to increase both separation and mass of your walls.



    Is Soundproofing walls effective?

    A questions we often gets asked "does soundproofing a wall really work". The answer, well, soundproofing an existing wall is a common situation our customers face. The same customers face issues with noise that include, noisy neighbours with noise coming through a party wall between adjoining houses, or wanting to reduce noise through the wall in an apartment or flat. All this noise is airborne. The best way to soundproof your wall is to add mass into the wall in addition to a separation of the new wall. So to answer the question yes, our PhonoWall® 27 Max or PhonoWall® 21 help dramatically reduce the noise from passing by adding mass in addition to a resilient layer to work as de-coupler. Ultimately cost pays a large factor, that's why these two composite acoustic wall products are an easy DIY solution as they're a direct to wall soundproofing panel solution. On the other-hand, some people prefer to use a sound isolation clip system such as the PhonoClip® which are designed to allow a decoupling separation between the existing wall or stud to the final finish (typically plasterboard and skim).


    What is the best soundproof wall product for me?
