PERFORATED ACOUSTIC TIMBER PANEL

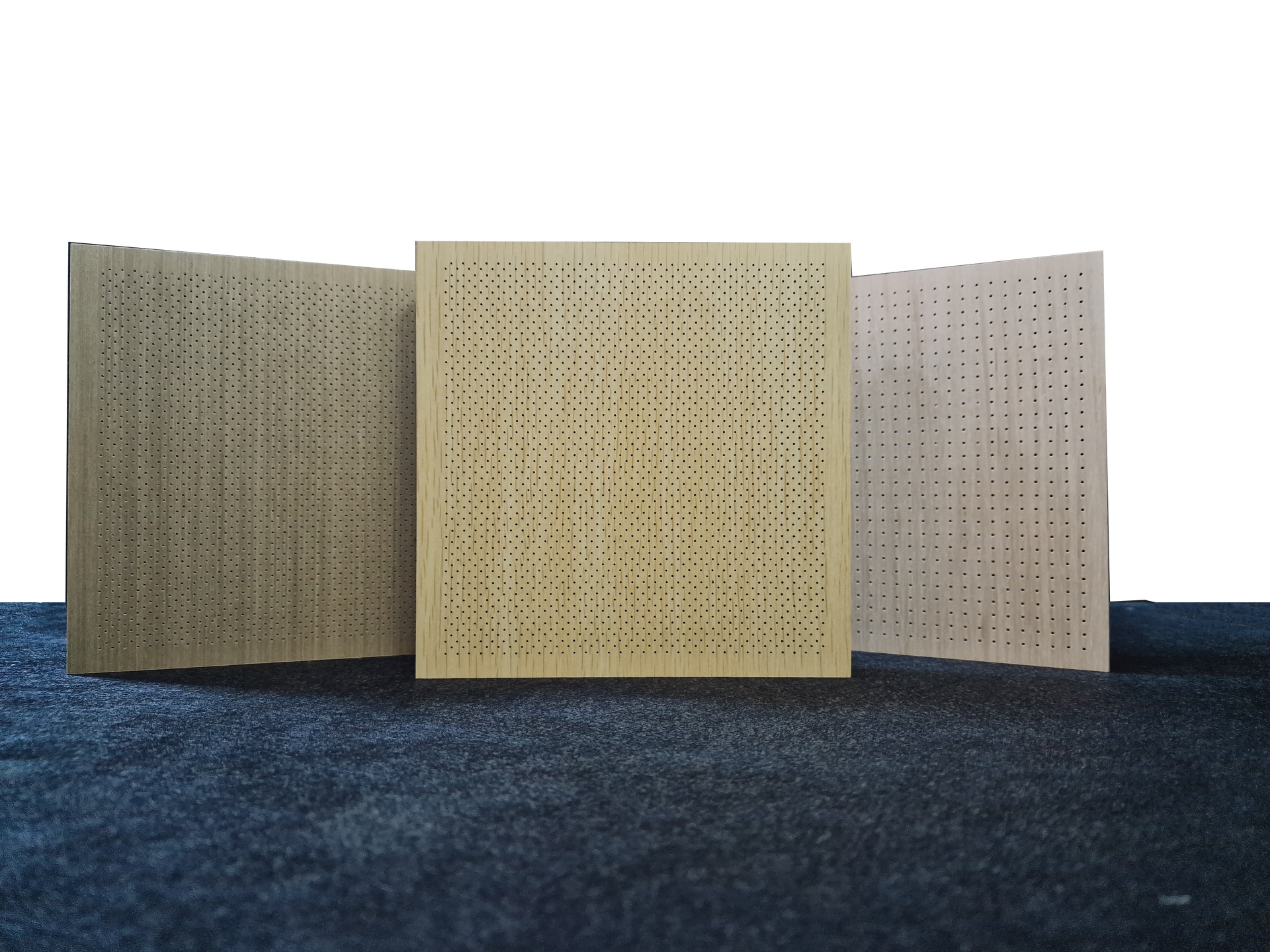

Acusorb® Medera Perforated
Acusorb® Medera Ideaperfo Perforated timber acoustic wall and ceiling panel system.
FT. CNC machined perforations for maximum absorption.
Description
Acusorb® Medera Ideaperfo Acoustic Panels
Acusorb® Medera Ideaperfo is our range of perforated and micro-perforated timber acoustic panels for walls and ceilings, designed to combine clean architectural detailing with effective sound absorption.
Manufactured from MDF substrates with precision CNC-machined perforation patterns, Ideaperfo panels are available in a variety of standard designs, with perforation diameters ranging from 0.5 mm micro-perforations through to larger circular perforations up to 10 mm. Patterns can be supplied in linear or staggered arrangements, allowing different levels of acoustic performance and visual appearance to be achieved.
Each panel is machined to support a neat installation, with jointing options suitable for either a seamless appearance or a defined shadow gap detail, depending on the project requirement.
The range is available in a choice of finishes, including painted MDF, melamine and natural timber veneer. Substrate options include standard MDF, fire-rated MDF and alternative MDF options, subject to the required specification and performance classification.
Acusorb® Medera Ideaperfo panels are designed to reduce reverberation and improve acoustic comfort in everyday spaces. Sound energy passes through the perforated face of the panel and is absorbed within the acoustic build-up behind. When installed with the appropriate air cavity and sound-absorbing material, selected configurations can achieve high levels of absorption, possible up to Class A absorption, depending on the panel type and installation build-up.
Ideaperfo is suitable for a wide range of public, commercial and educational interiors, including communal areas, reception spaces, conference rooms, atria, auditoria, breakout spaces, offices, restaurants, schools and universities. It is particularly suited to areas where a visually refined finish and effective acoustic performance are both required.
With a wide range of perforation patterns, finishes and installation options available, Acusorb® Medera Ideaperfo offers a flexible acoustic solution for projects requiring both design quality and acoustic control.
Our technical team is available to assist with product selection, acoustic build-ups, finish options and installation guidance.
System Options
Environment
FSC or otherwise sustainably sourced materials available.
Fire Performance
Acusorb® Medera panels are available with reaction to fire classifications upto EN 13501-1: B-s1, d0, depending on the selected finish, substrate and panel configuration.
Finishes
Solid timber provides the most authentic result but can limit some design possibilities.
Veneers enable further options and potential cost savings.
Acoustics
Solutions up to Class A for ceilings and walls.
Downloads
Case Studies
Available Upon Request

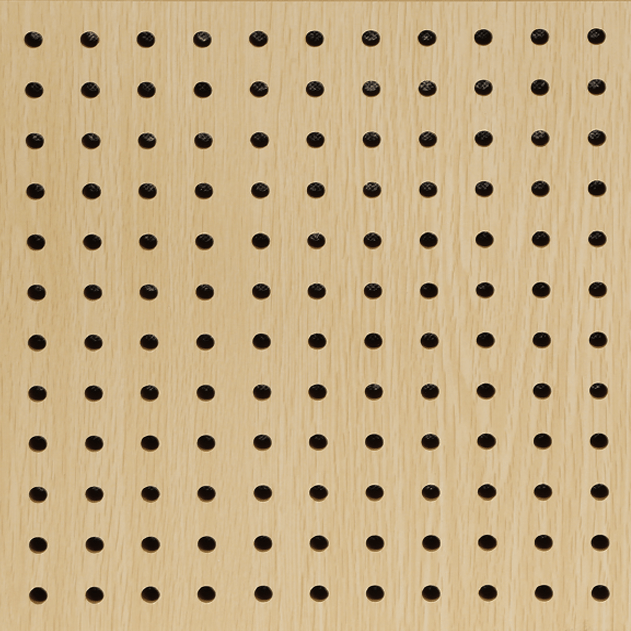

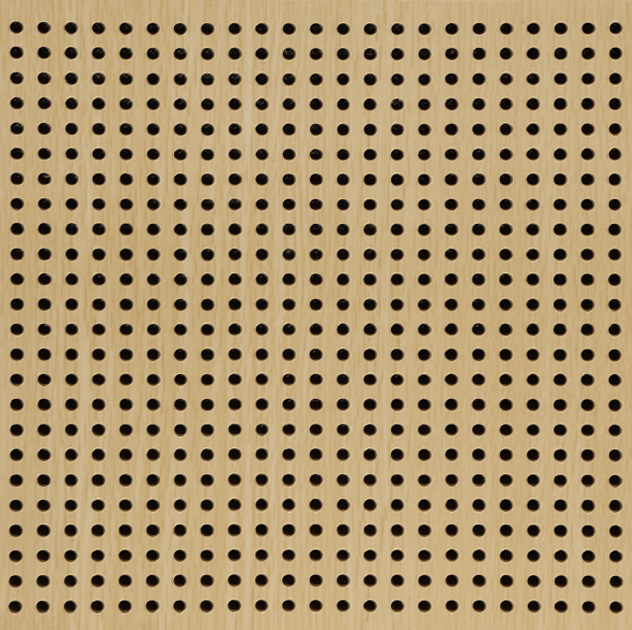

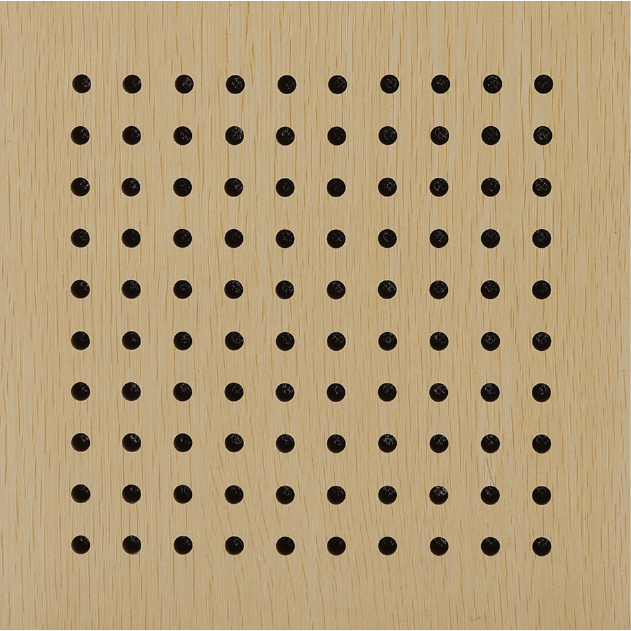

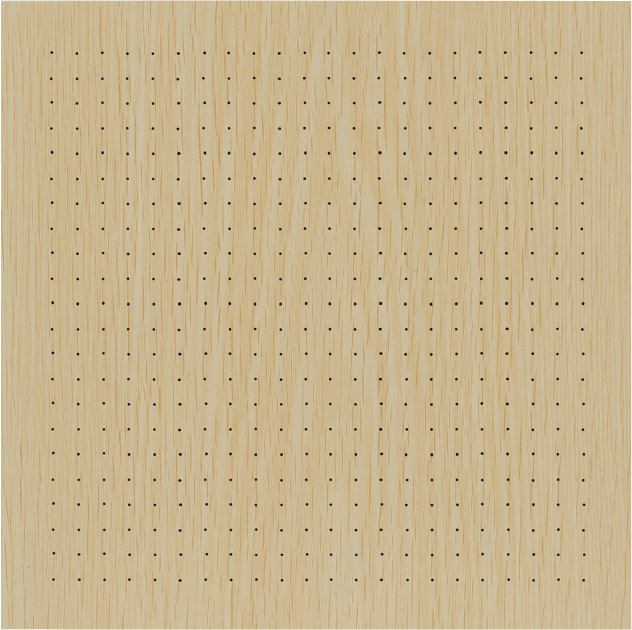

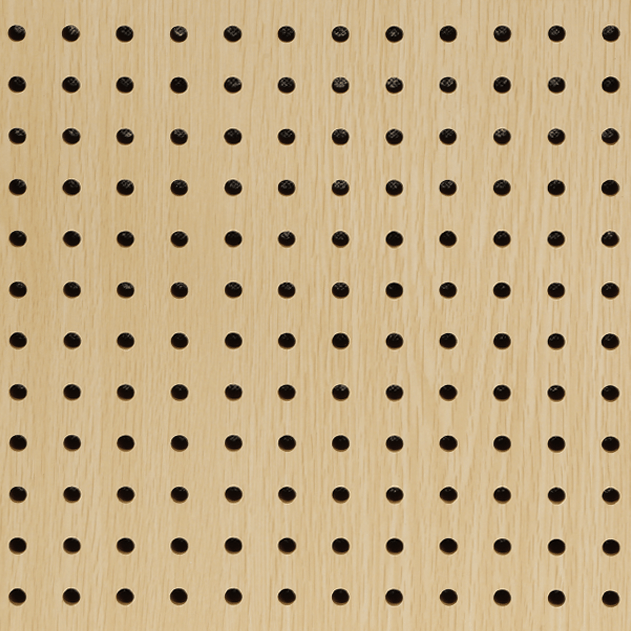

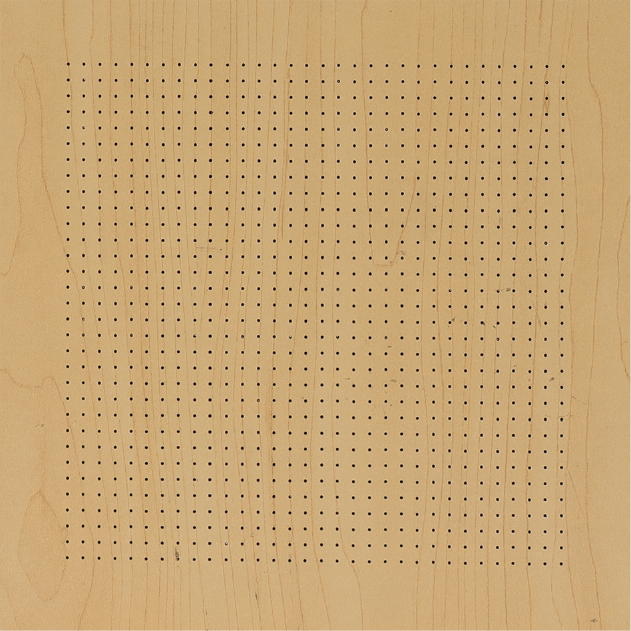

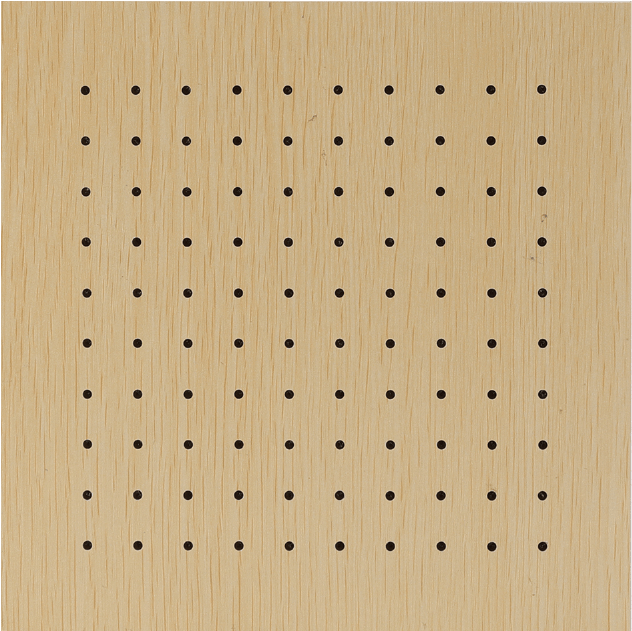

Styles Available
Non standard styles may be available upon request - Perforations up to 10mm diameter
Features

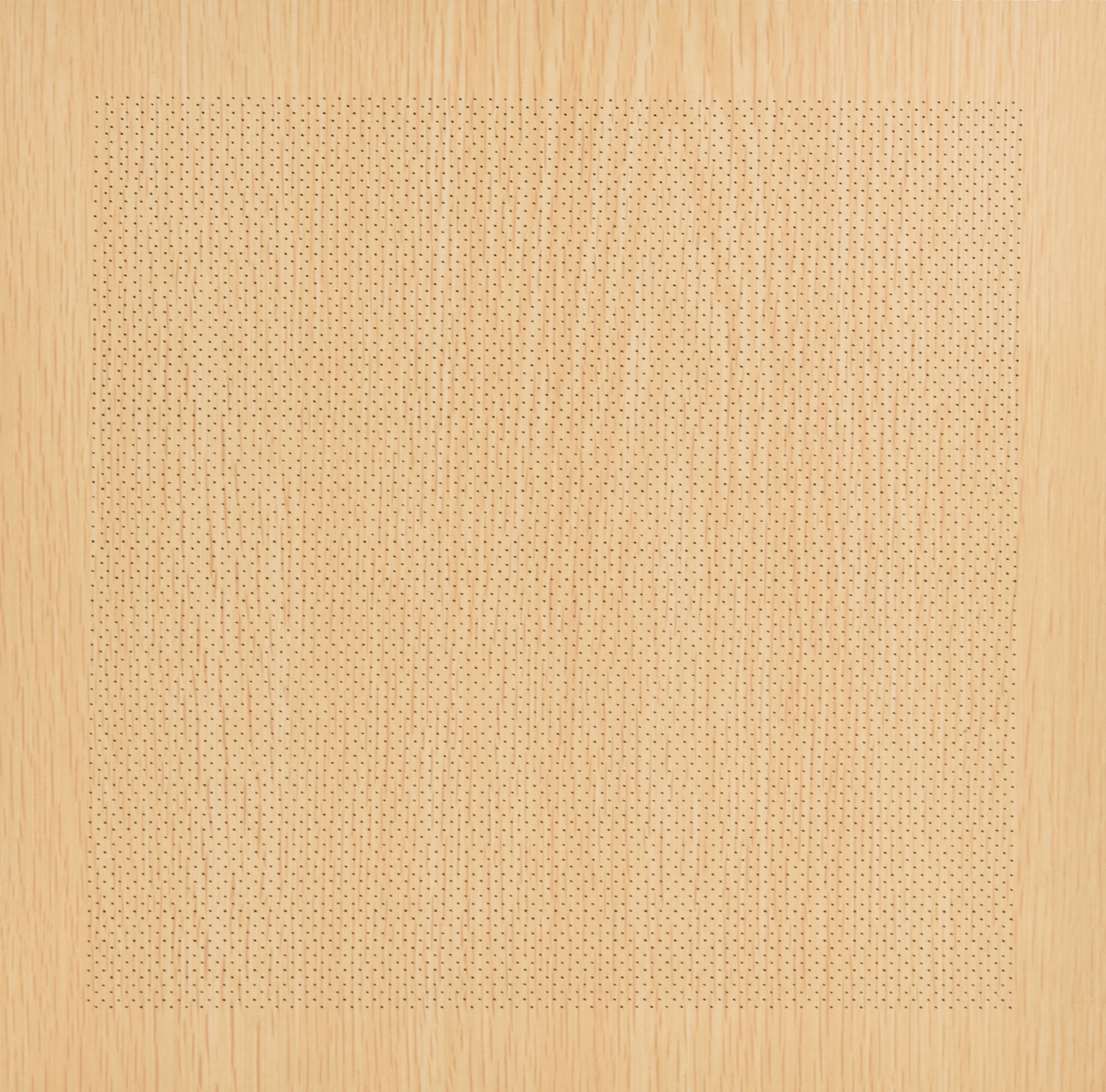

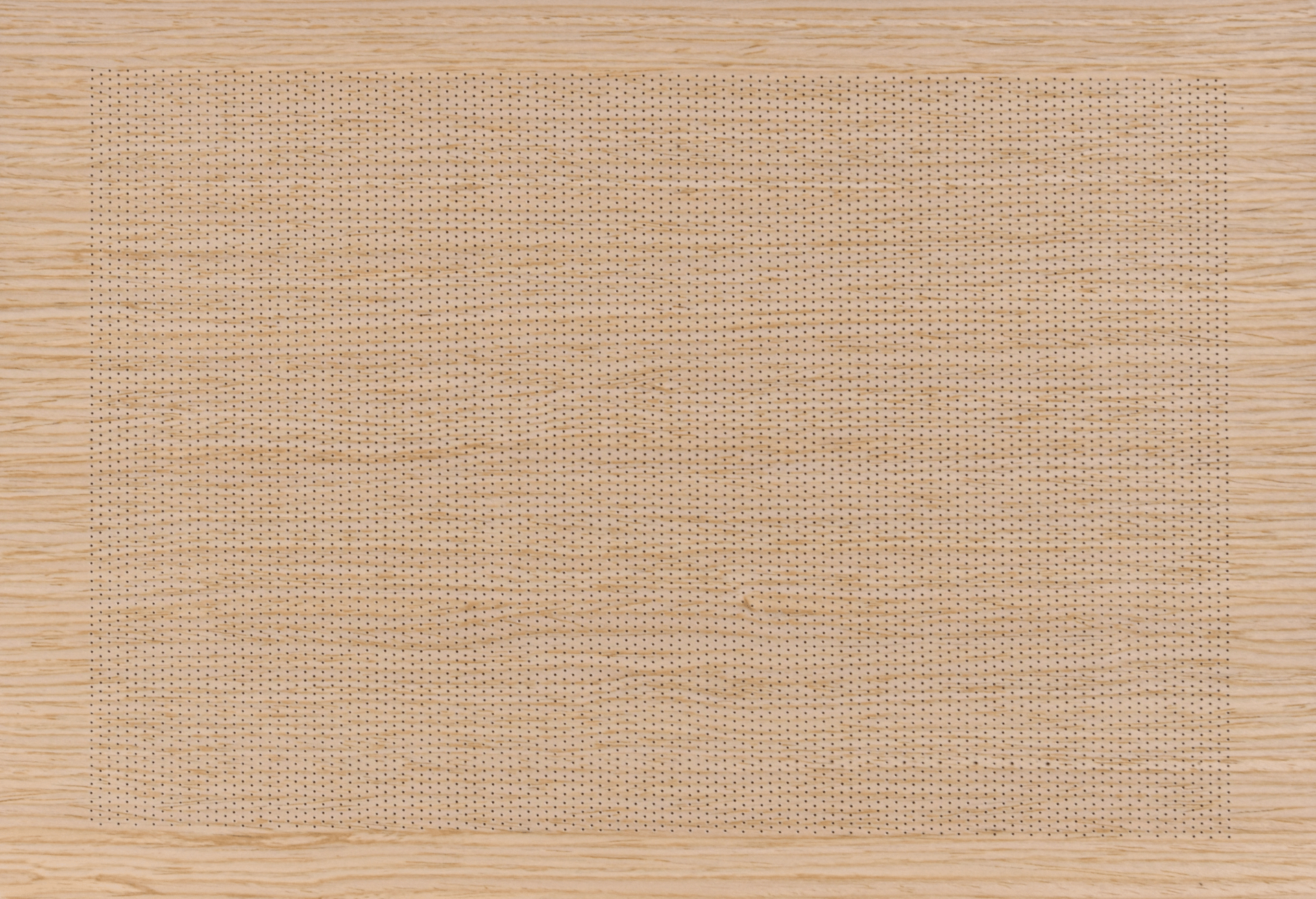

Nano Perforations <0.5mm.
Typical Pens Tip is 1mm.
Technological advancements through business funding rounds have provided the resource to create these nano perforations, when from afar the system appears like a natural untouched wood finish. Close up you can see the workmanship and skill from our crafts team.
Nano perforated are 0.5mm micro-holes only perceptible at short eye distance (+/- 250 000 holes/m2)
