ACOUSTIC FABRIC PANEL
Acusorb® Tessuto
Fabric upholstered acoustic panels offering 'Class A' sound absorption and impact resistance.
Available In Various Fabrics inc: Lucia, Blazer, Cara and Bondai.
Specialist fabric options available upon request.
Description

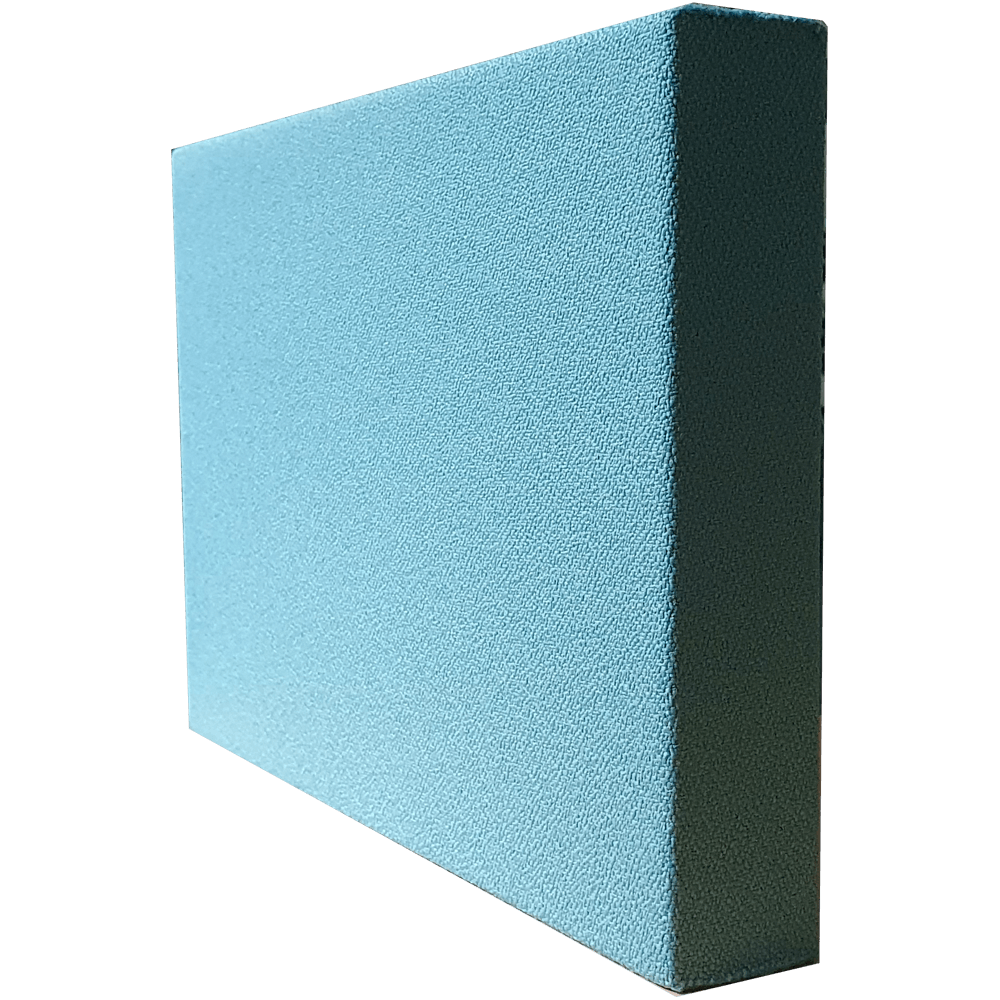

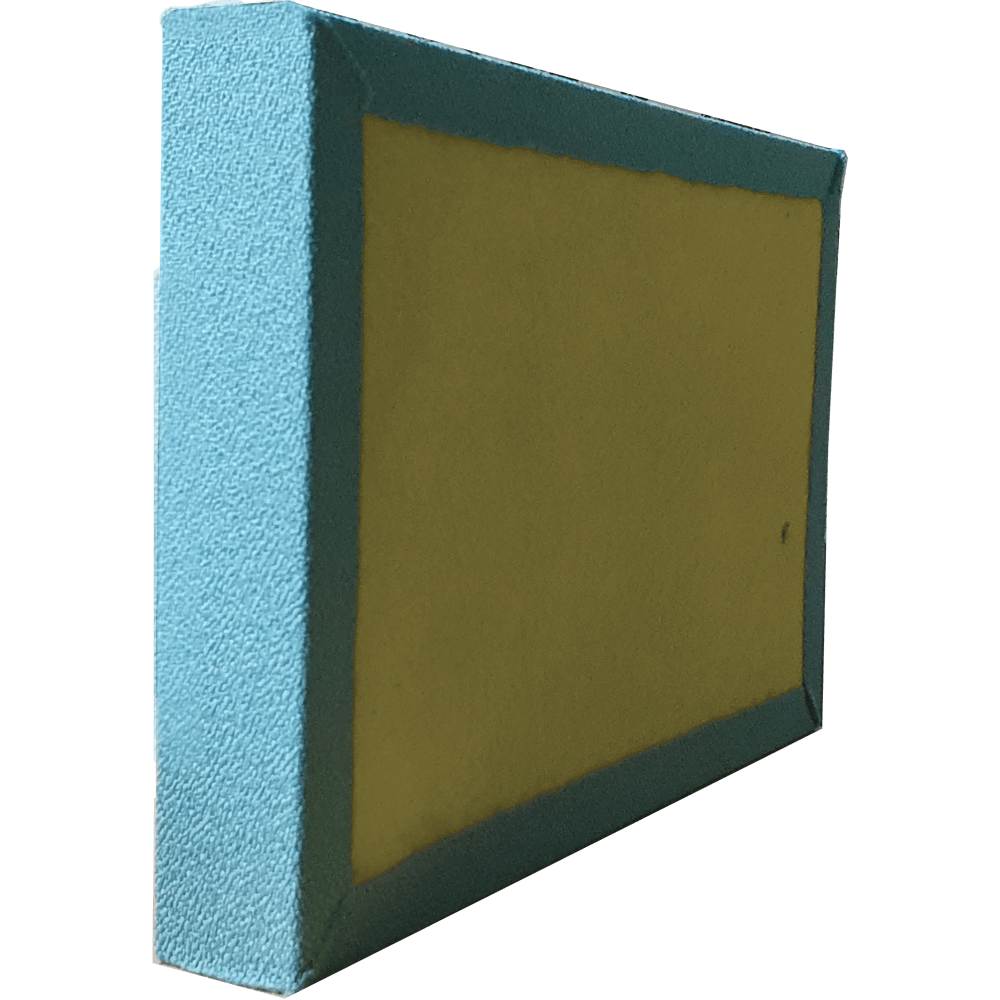

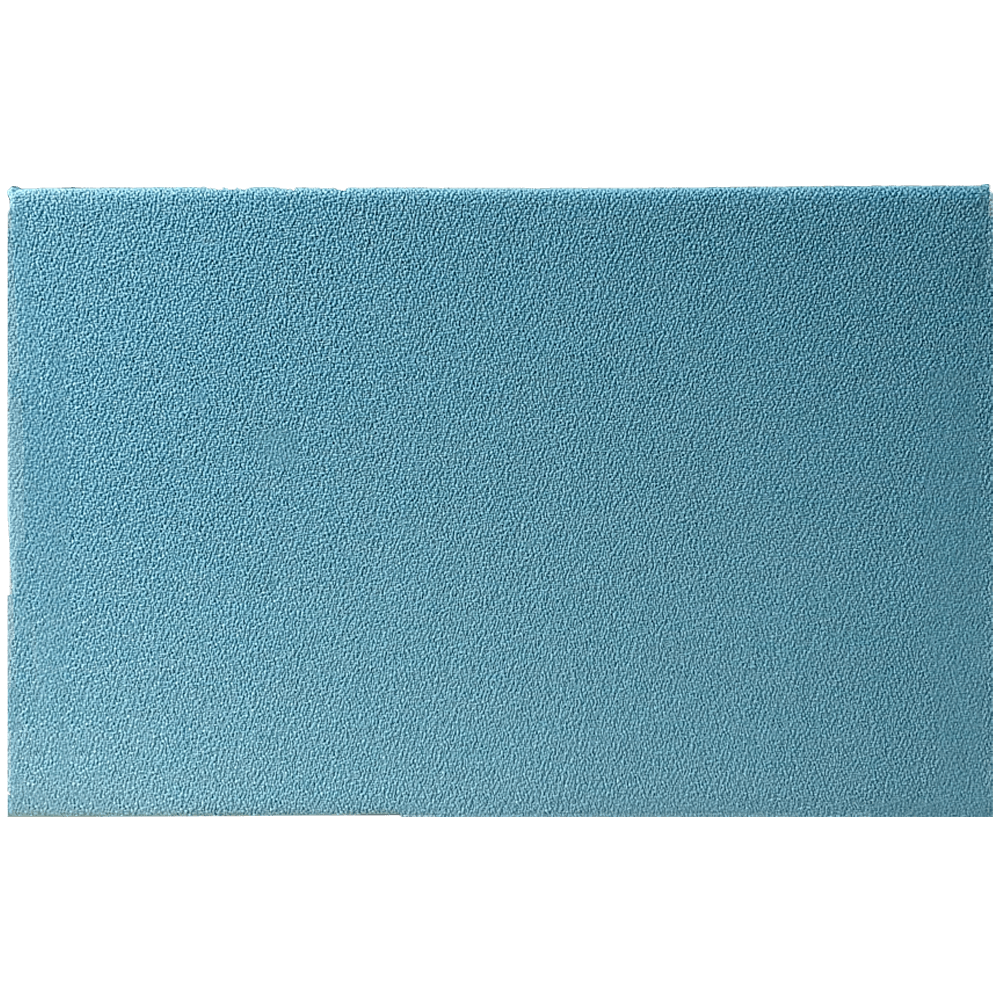

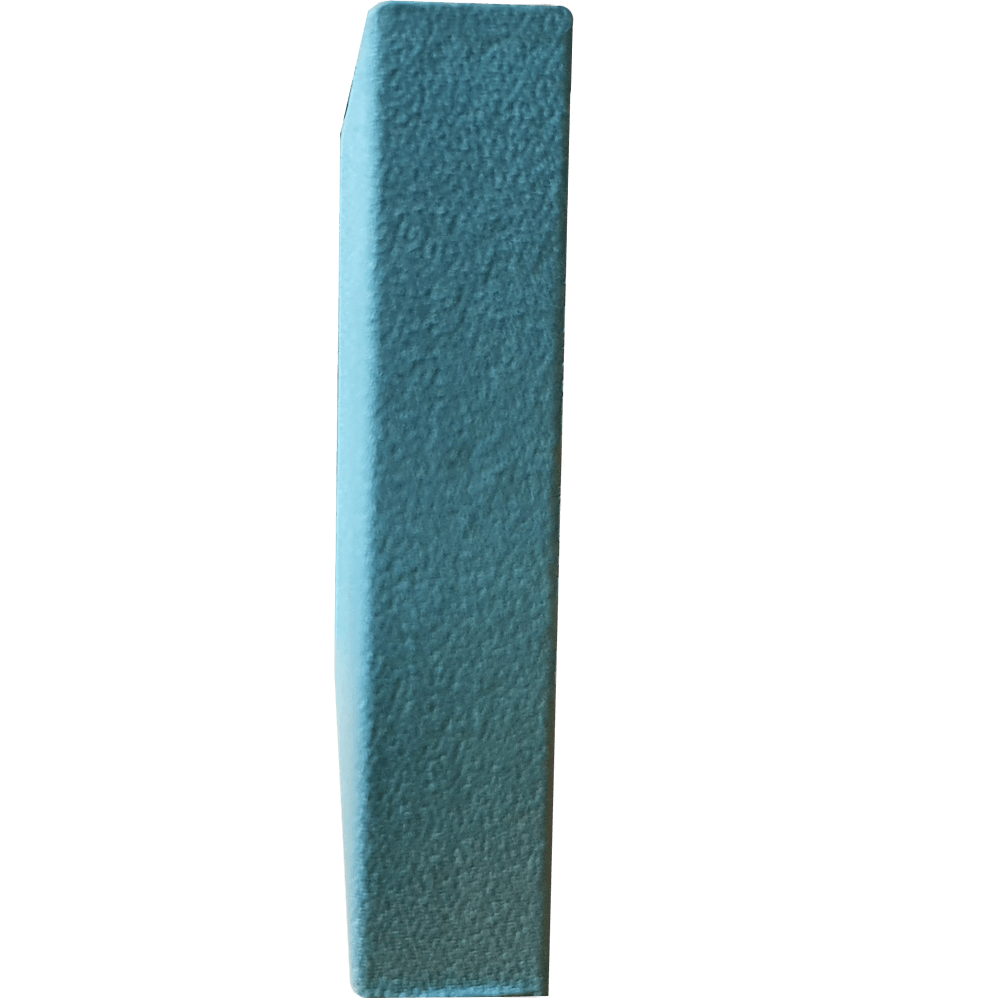

AcuSorb® Tessuto acoustic wall panels are a high quality fabric wrapped, sound absorbing panel system. These panels are designed solely as a wall lining to control ‘Echo’ or reverberant noise in areas with hard surfaces. The AcuSorb® Tessuto acoustic panels are fabric wrapped in a wide range of fabrics. The acoustic fabric panels improve the quality of the workplace environment due to the panels ability to absorb echo and reverberation. Each panels face and edges are upholstered using an acoustically transparent fabric and available in many different fabric textures and colours.
Our sound absorbing acoustic wall panel systems are extensively used in schools, offices, atria, restaurants, recording studios, community halls and meeting rooms.
Tessuto fabric upholstered acoustic wall panels are more commonly used in home theatres, recording studios, engineering booths, restaurants, bars and cafes, coffee houses, libraries, universities, schools, conference rooms, office buildings, apartment complexes, studio designs, call centres home decor, art galleries, medical facilities and hospitals.
These fabric upholstered wall panels provide noise or sound mitigation offering both greater silencing effects and enhanced quality of sound suited to speech intelligibility. AcuSorb® Tessuto acoustic wall panels reduce reverberation levels in any space, which in turn reduces the ambient noise, significantly improving the clarity of sound.
AcuSorb® Tessuto sound absorbing acoustic wall panels are flexible in terms of colour, texture, shape or size, they can be totally bespoke and designed to fit your needs or available in standard traditional sizes. This acoustic panel system can be transformed and manufactured in various geometric shapes, circular, triangular, elliptical or oval. At acuphon we offer a large range of acoustically transparent fabrics giving both a choice in colour and choice in texture. Blend in or a total contrast, you decide.
System Options
Environment
High content of recyclable material
Fire Performance
Dependent on fabric choice, fire performance is rated between 'Class 1' and 'Class 0' spread of flame.
Finishes
Standard available fabric: Lucia, Blazer, Cara and Bondai.
Designer fabric options available upon request.
Acoustics
Solutions up to Class A for ceilings and walls.
Downloads
Case Studies
Available Upon Request
Styles Available
(Non standard styles may be available upon request)

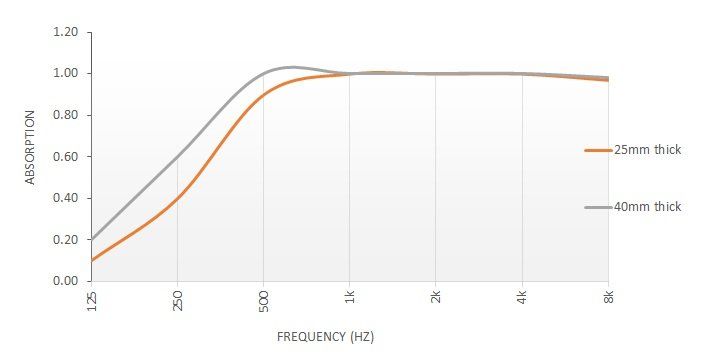

Acoustic Performance
| Sound absorption coefficient αs | Thickness | 125 | 250 | 500 | 1k | 2k | 4k | 8k | αw | NRC | Class |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Direct To Wall | 25mm | 0.10 | 0.40 | 0.90 | 1.00 | 1.00 | 1.00 | 0.97 | 0.75 | 0.83 | C |
| Direct To Wall | 50mm | 0.20 | 0.60 | 1.00 | 1.00 | 1.00 | 1.00 | 0.98 | 0.90 | 0.90 | A |
*Class, Building Regulations Absorber Classification, when tested to BS EN ISO 11654-1997
Features
One Panel,
Several Applications
Optional: Impact Resistant Layer
The impact layer is a very low profile reinforced mesh and is bonded to the panel prior to the being fabric wrapped. This high impact layer is particularly suited to areas where there is a likelihood of high footfall, such as sporting facilities and classrooms.
Fabric Swatch Cards
