HANGING ACOUSTIC FABRIC RAFT
Acusorb® Tessuto Raft
Acusorb® Tessuto Rafts.'Class A' acoustic performance. perfect for areas using a ‘thermal mass construction’ air tightness building method.
Available In Various Fabrics Including: Lucia, Blazer, Cara and Bondai.
Specialist fabric options available upon request.
Description

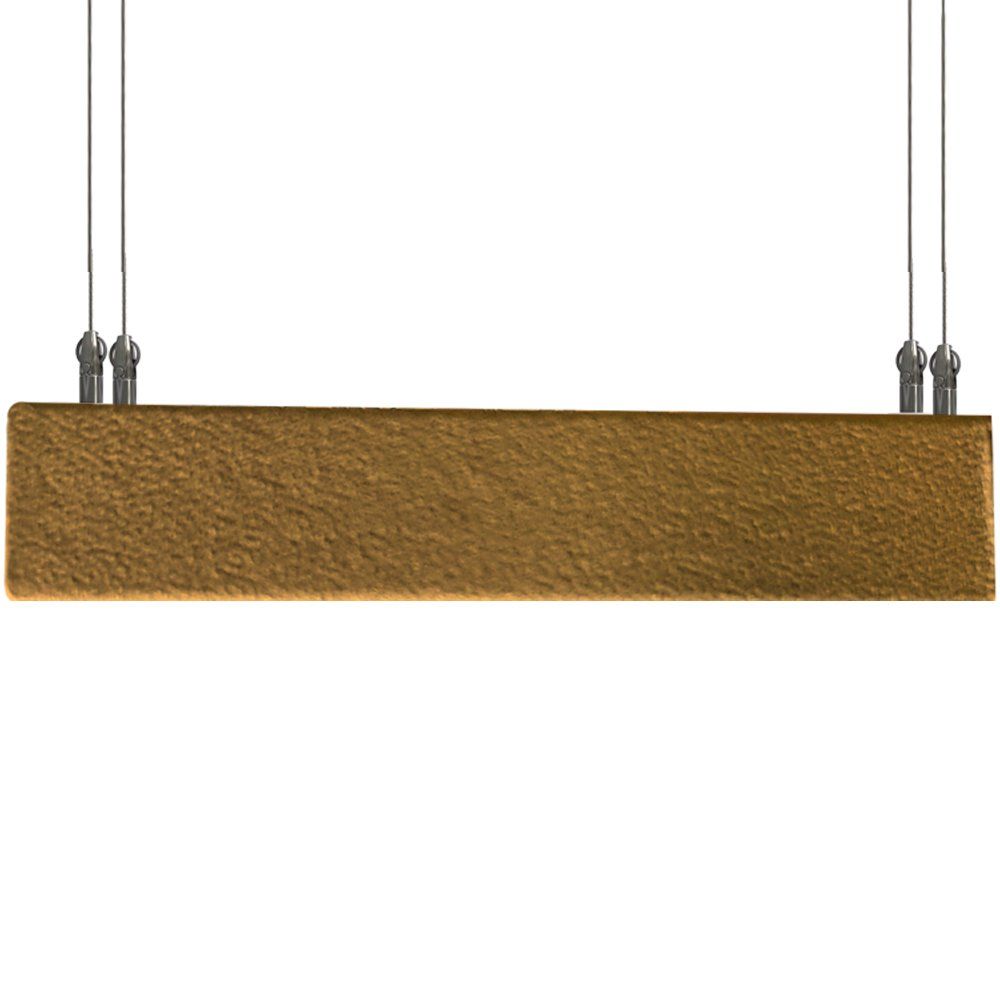

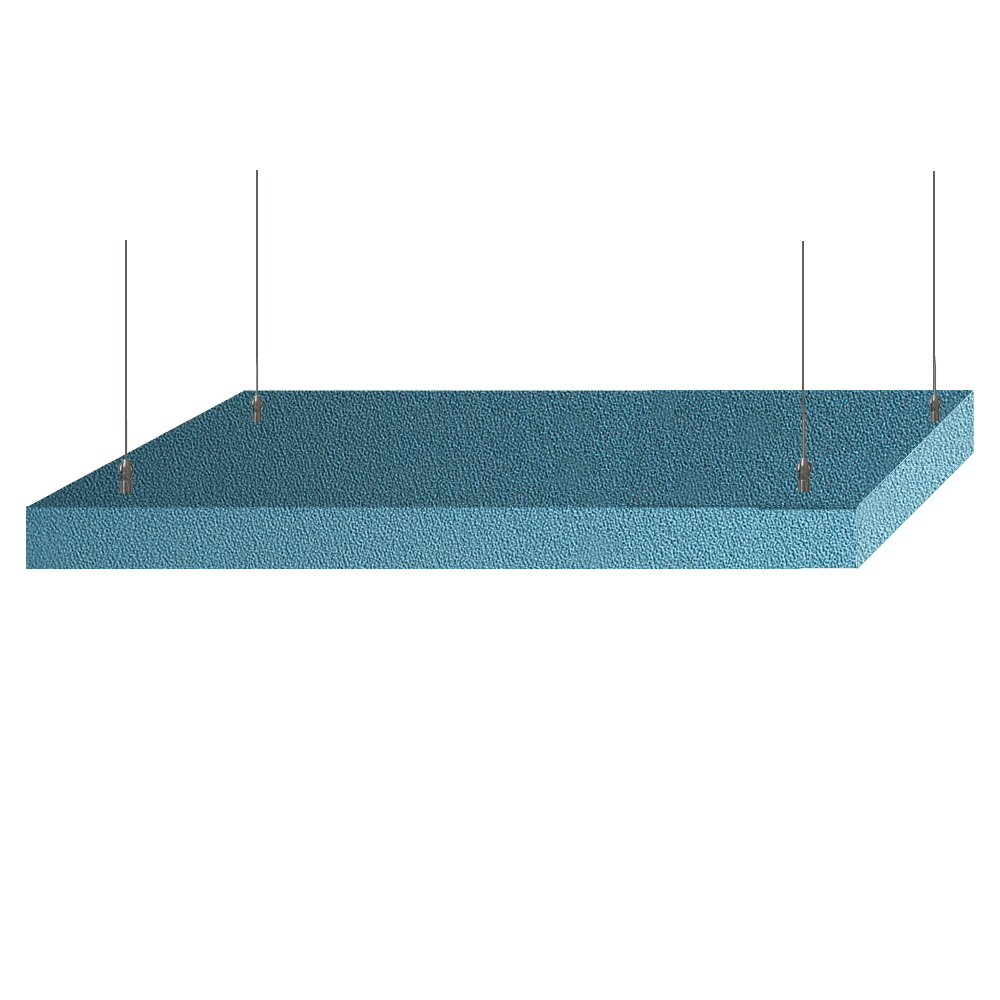

The Tessuto Raft is a fabric upholstered acoustic ceiling raft that combines great looks with performance. The Tessuto Raft offers an exciting and creative alternative to that of traditional painted ceiling rafts. Acusorb® Tessuto Rafts are the ideal retrofit solution to your existing ceiling and will totally transform your space with this simple upgrade. They are designed to achieve the highest acoustic performance without compromising on style. Their purpose is to absorb sound, enabling the optimum level of acoustic comfort. Tessuto Rafts reduce reverberant noise also perceived as “echo” ensuring heightened speech intelligibility and acoustic tranquillity.
Simply locate and easily fit Acusorb® Tessuto Rafts with adjustable drop wires to achieve a refreshed visual appeal, enhanced sound absorption, design flexibility and rapid installation. Acusorb® Tessuto Rafts comes in a range of fabric choices offering texture, colour, and fire performance. These panels easy to clean and require very low maintenance.
These rafts also come in varying geometric shapes giving you additional design options, they not only look great they also eliminate reverberative noise issues in an given area. Textures, colours and suspension heights can be mixed and matched.
These Acusorb® Tessuto Rafts can be used for many types of application, for example, offices, schools, restaurants, hospitals, retail, hospitality and leisure. They not only ensure excellent acoustic results but also offer superb visual characteristics that enhance the dynamics and appearance of any space. These acoustic rafts are available in a variety of sizes and are typically 40mm thick, other thicknesses can be available to match your specification.
Acusorb® Tessuto Rafts offer ‘Class A’ acoustic performance and are perfect for areas using a ‘thermal mass construction’ air tightness building method by enabling the air to flow freely around the room.
System Options
Environment
High content of recyclable material
Fire Performance
Dependant on fabric choice, fire performance is rated between Class 1 and Class 0.
Finishes
Fabrics available from Camira: Lucia, Blazer and Cara. Specialist fabric options available upon request.
Acoustics
Solutions up to Class A for ceilings
Downloads
Case Studies
Available Upon Request
Styles Available
Non standard styles may be available upon request
Also Available In: (As standard)
Wave (Concave)
Wave (Convex)
Circle
Hexagon
Pearl
Acoustic Performance
| Sound absorption coefficient αs | 125 | 250 | 500 | 1k | 2k | 4k | αw | NRC | αw | NRC | Class |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100mm Suspension | 0.46 | 0.85 | 0.96 | 1.00 | 1.00 | 1.00 | 1.00 | 1.45 | 0.75 | 0.83 | A |
*Class, Building Regulations Absorber Classification, when tested to BS EN ISO 11654-1997
Features
Revolutionary
Hanging System Fixing
Innovative adjustable length suspension systems are available in many different forms. These enable a stylish and quick method of fixings. Perfectly situated in architectural surroundings where aesthetics and assured strength is key.
Fabric Swatch Cards
FAQ
