PhonoWall®

1200 x 1200 x 24-27mm (1.24m²)

SOUNDPROOF WALL COMPOSITE BOARD

PhonoWall® Series is a direct-to-wall acoustic system with higher mass for superior sound reduction.

Ideal for medium-to-loud airborne noise – such as speech and TV PhonoWall® 24–27 Max is designed to deal with exactly that.

Product Fire Rated Airborne Size
PhonoWall® 24 No 54dB 1200*1200*24mm
PhonoWall® 27 Pro No 59dB 1200*1200*27mm
PhonoWall® 27 FD60 Max Yes (FD60) 59dB 1200*1200*27mm

Description

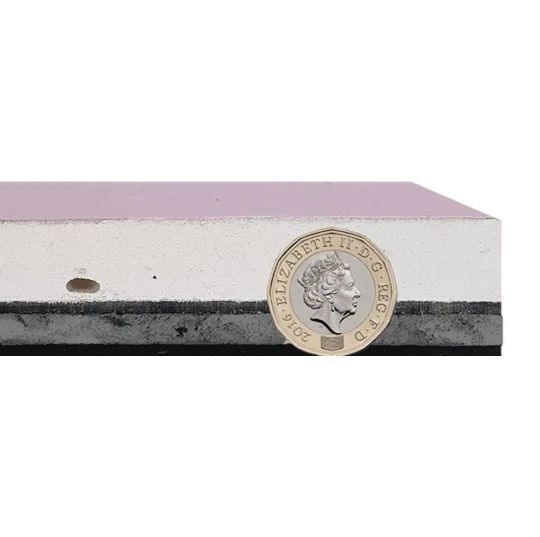

PhonoWall® acoustic wall panels deliver high-performance sound control for residential and commercial projects: PhonoWall® 24 combines acoustic-rated plasterboard with a heavy mass layer and resilient PE foam interlayer for effective mid–high frequency noise reduction; PhonoWall® 27 Pro adds a second mass layer, separated by the same resilient core, to improve overall acoustic performance and boost low-frequency (bass) attenuation; and PhonoWall® 27 FD60 Max provides the same advanced acoustic build-up as the 27 Pro but with fire-rated plasterboard to achieve FD60 for compliant commercial installations.



PhonoWall® space-saving acoustic wall panels fix directly to existing walls with 80 mm hammer-in fixings, no timber battens, no resilient bars, so you maximise usable floor area, achieve a slim, low-profile finish that’s perfect for refurbishments and tight spaces, and can decorate immediately, making it an ideal solution for soundproofing existing properties and new builds with lightweight blockwork.



Suitable for refurbishing existing masonry walls and upgrading them to effective partition or separating walls between dwellings, PhonoWall® is an easy-to-fit, slimline acoustic solution for domestic and commercial projects that need better sound insulation without sacrificing floor space, and it is designed to help meet the requirements of Approved Document E (Part E) of the Building Regulations.


Direct-to-wall acoustic upgrade.

High performance, versatile acoustic isolation system.


Our professional team are here to help you with any questions.

Learn about NOISE and the effect it has on everyday life - Try our free guide to Soundproofing - Here

  • What are the differences between the PhonoWall® range?

    The key differences between PhonoWall® 21 compared to PhonoWall® 27 Max is the number of barrier layers and the grade of plasterboard being used. The 27 is commercial standard incorporating a fire rated plasterboard, whereas the 21 uses a standard domestic rated acoustic plasterboard.

  • What are your business hours?

    Our technical team are available on live chat and via phone between 8am - 5pm Mon - Fri (excluding Bank Holidays). It may be worth noting that our warehouse runs seven (7) days a week fulfilling orders.

  • What else do I need with PhonoWall®?

    You will require M6 Hammer Screws, acoustic sealant and scrim tape for the joints.

  • Can I paint over the PhonoWall®?

    Yes. You can paint  straight over the PhonoWall® without any requirement of additional layers. Similiarily you can apply wall paper straight overtop.

  • Can I glue it to the wall?

    No. PhonoWall® 24 and 30 Max are heavy products which require adequate fixing, we would only advise installation using M6 hammer screws.

  • When can I expect my delivery?

    We manufacture the PhonoWall® range as a core product of our range, which means we generally always hold stock. Once we get your order we can get it to you within in 3 - 5 working days.

    Please Note: All orders made before 12pm are processed the same day, orders made after 12pm are processed the following day.

  • In real world terms, how good is PhonoWall®?

    Aside from being one of the top performing composite acoustic wall solution on the market, PhonoWall® makes noticeable difference once installed.
